   Valves / Ball Valves

Single Piece
(Screw End)		 Three Piece
(Screw End)		 Single Piece Design
(Flange End)		 Two Piece Design
(Flange End)		 Three Piece Design
(Flange End)

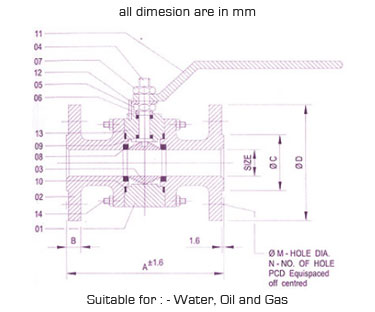

Three Piece Design (Flange End)


Primary service reating & test pressure
Class
Working
HYD. Test pressure press.
Body
Seat
Temp.
150
150 PSIG
425 PSIG
300 PSIG
200° F
300
300 PSIG
1100 PSIG
800 PSIG
200° F
Air Test - Seat 80 PSIG ± 10 PSIG

Technical Data
Design & Manufacturing STD: API 602
Testing & Inspection STD:
 API 598/ BS : 5146
Face to Face: as per ANSI B 16.10
End connections: Flanged as per ANSI B 16.5
�
No.
Description
Material
Qty
01
Body
C.I. / C.S. / S.S. 304/ S.S. 316
1
02
Body connector
C.I./C.S./S.S. 304 / S.S. 316
1
03
Ball
AISI 304 / AISI 316
1
04
Stem
AISI 304 / AISI 316
1
05
Gland nut
AISI 304 / AISI 316
1
06
Gland bush
AISI 304 / AISI 316
1
07
Lock Nut
AISI 304 / AISI 316
1
08
Seat Ring
PTFE
2
09
Stem Seal
PTFE
2
10
Body Sealent ring
PTFE
1
11
Wrench
C.S. / S.S. 304 / S.S. 316
1
12
 Stop C.S. / S.S. 304 / S.S. 316
1
13
 Stopper pin C.S. / S.S. 304 / S.S. 316
1
14
 Stud & Nut C.S. / S.S.
1

Class 150
Size
A
B
øC
øD
øM
N
PCD
15
109
11.1
35
89.0
16
4
60.4
20
119
12.7
43
98.0
16
4
70.0
25
128
14.2
51
108.0
16
4
79.0
32
141
15.7
64
117.0
16
4
89.0
40
166
17.5
73
127.0
16
4
95.5
50
177
19.0
92
152.0
19
4
120.5
65
190
22.3
105
178.0
19
4
140.0
80
202
24.0
127
190.0
19
4
152.4
100
230
24.0
157
229.0
19
8
190.5
125
255
24.0
186
254.0
22
8
216.0
150
266
25.0
216
279.0
22
8
241.0
200
291
28.5
270
343.0
22
8
298.0
250
331
30.0
324
406.0
25
12
362.0

Class 300
Size
A
B
øC
øD
øM
N
PCD
15
141
14.2
35
95.0
16
4
66.5
20
153
15.7
43
117.0
19
4
82.5
25
164
17.5
51
124.0
19
4
89.0
32
177
19.0
64
133.0
19
4
98.5
40
191
20.5
73
155.5
22
4
114.0
50
215
22.0
92
165.0
19
8
127.0
65
240
25.0
105
190.5
22
8
149.0
80
282
28.5
127
209.5
22
8
168.0
100
306
32.0
157
254.0
22
8
200.0
125
380
35.0
186
279.4
22
8
235.0
150
402
36.5
216
317.5
22
12
270.0
200
421
41.0
270
381.0
25
12
330.0
250
458
47.5
324
444.5
29
16
387.0

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
