Lift Check Valves
Hydraulic Test Pressure
Std.
Body
Seat
Air
ND 16
32 kg. /cm
2
464 PSIG
16 kg. /cm
2
232 PSIG
6 kg. /cm
2
80 PSIG
ND 40
80 kg. /cm
2
1160 PSIG
40 kg. /cm
2
580 PSIG
6 kg. /cm
2
80 PSIG
Primary Service Rating & Test Pressure
ND 16
16 kg / cm
2
220° C
ND 40
40 kg / cm
2
400° C
Technical Data
Manufacturing STD:
BS 1868
Testing & Inspection STD:
API 598
Face to Face:
DIN ND - 16/ND-40
Shell wall thickness:
ANSI B 16.34
End connections:
DIN 2533/ 2543/2535/2545/
BS 1560

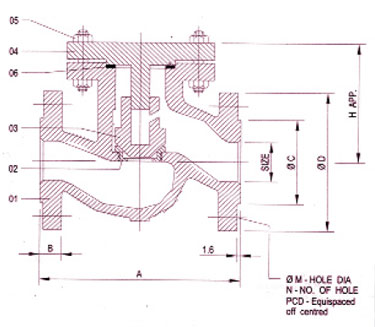

No.
Description
Material
Qty.
01
Body
ASTM A 216 Gr. WCB / Cast Iron
1
02
Seat Ring
AISI 410 (13% CR.)
1
03
Disc
AISI 410 (13% CR.)
1
04
Cover
ASTM A 216 Gr. WCB / Cast Iron
1
05
Cover Stud &
Nut
ASTM A 216 Gr. B7
ASTM A 216 Gr. 2H
-
06
Gasket
Compressed Asbestor Fibre
1
Size
A
B
ø C
ø D
H
ø M
N
PCD
25
161
18
68
115
88
14
4
85
40
201
20
88
150
105
18
4
110
50
229
20
102
165
118
18
4
125
65
291
22
122
185
128
18
8
145
80
311
24
138
200
140
18
8
160
100
351
26
162
235
158
22
8
190
125
401
28
188
270
175
26
8
220
150
479
30
218
300
195
26
8
250
200
599
35
285
375
243
30
12
320
250
729
42
345
450
334
33
12
385
Note :
Due to constant upgradation designs & dimensions are subject to change wihtout notice.
