   Valves / Gate Valves

ASA Class 150/300 ASA Class 400/600 Butt Weld End Gate Valve

Butt Weld End Gate Valve



Primary service reating & test pressure
Class
Working press.
HYD. Test pressure
Body
Seat
Temp.
150
150 PSIG
425 PSIG
300 PSIG
500 ° F
300
300 PSIG
1100 PSIG
800 PSIG
800 ° F
400
400 PSIG
1450 PSIG
1060 PSIG
800 ° F
600
600 PSIG
2175 PSIG
1600 PSIG
800 ° F
Air Test - Seat 80 PSIG ± 10 PSIG

Technical Data
Manufacturing STD: API 600 / BS 1414
Testing & Inspection STD:
 API 598
Face to Face: as per ANSI B 16.10
Shell wall thickness: ANSI B 16.34
Butt weld ends: ANSI B 16.25
�

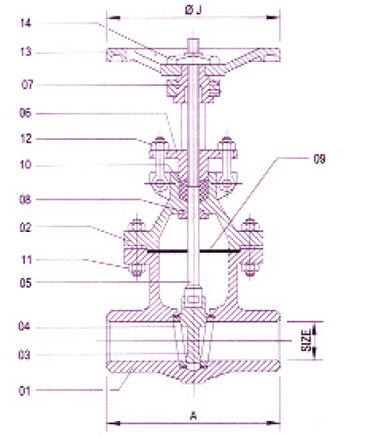

No. Description Material
Qty.
01 Body ASTM A 216 Gr. wcb
1
02 Bonnet ASTM A 216 Gr. wcb
1
03 Wedge AISI 410 ( 13% CR.)
1
04 Seat ring AISI 410 ( 13% CR.)
1
05 Stem AISI 410 ( 13% CR.)
1
06 Gland Carbon Steel
1
07 Yoke Sleeve NI - Resist
1
08 Bnnet Bush AISI 410
1
09 Gasket Spiral wound metalic Gasket
1
10 Gland packing Matalic Wire Reinforced
Graphited Asbestos
-
11 Bonnet Stud & Nut ASTM A 193 Gr. B7
ASTM A 194 Gr. 2H
-
12 Eye Bolt & Nut ASTM A 193 Gr. B7
ASTM A 194 Gr. 2H
2 Set
13 Hand Wheel Cast Iron
1
14 Hand Wheel Nut Carbon Steel
1


Class - 150
Class - 300
Class - 400
Class - 600
Size
A
ø J
A
ø J
A
ø J
A
ø J
25
128
123
40
166
152
192
152
242
250
242
250
50
179
203
215
203
291
305
291
250
65
191
203
240
203
331
305
331
405
80
202
254
281
254
355
405
355
405
100
230
305
304
305
405
405
433
490
125
255
305
380
356
456
490
507
490
150
268
356
402
356
494
490
560
610
200
293
356
420
406
596
610
659
675
250
331
406
456
457
672
675
786
825
300
335
457
501
508
761
825
837
825
all dimesion are in mm

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
